Section 40: Square to Round (Double Offset)

Extracted Text

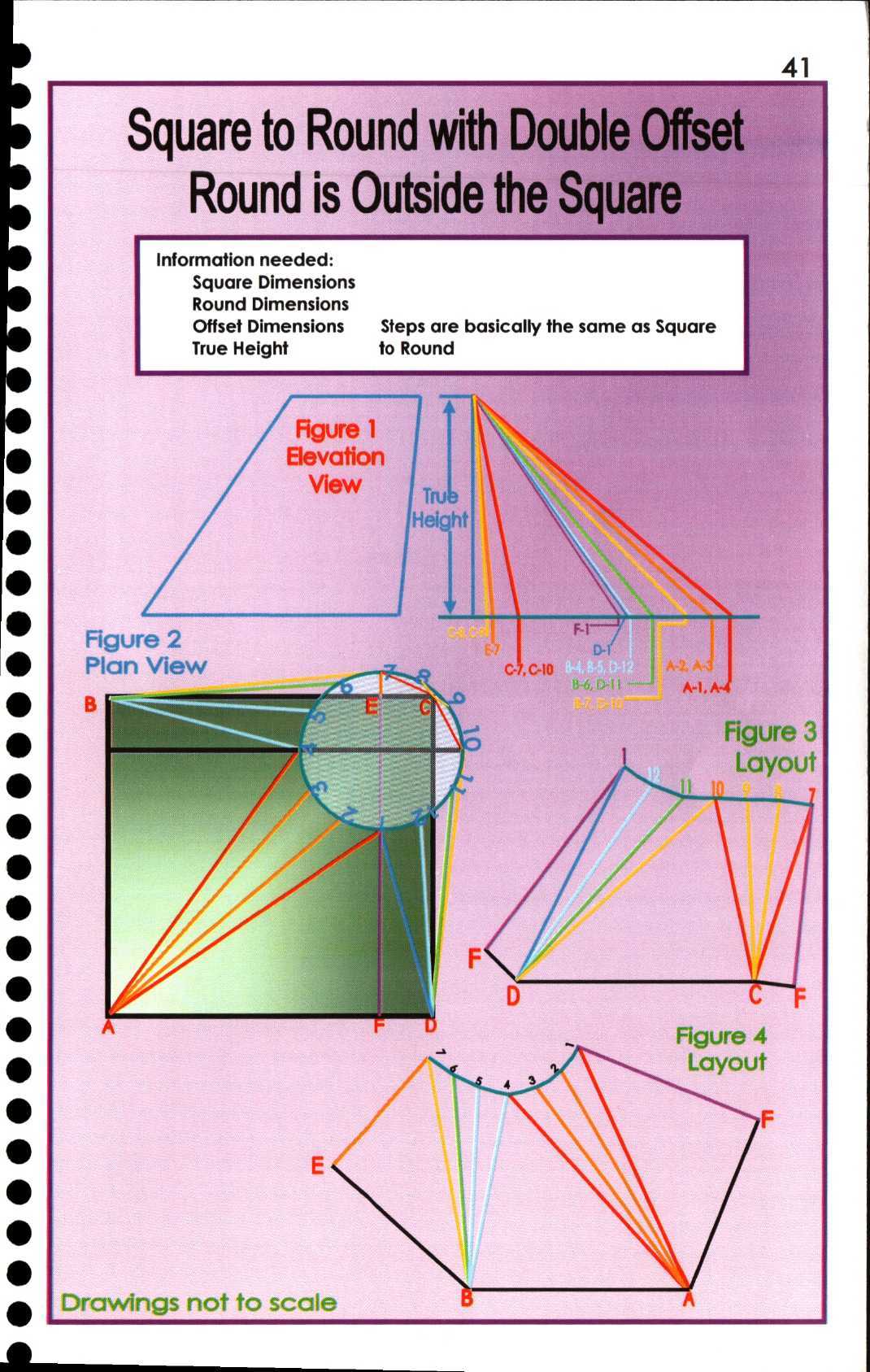

Information needed: Square Dimensions Round Dimensions Offset Dimensions True Height Steps are basically the same as Square to Round Figure 1 Elevation View Figure 2 Plan View Figure 3 Layout Figure 4 Layout Drawings not to scale A-L A 41
