Section 38: Oval to Round

Extracted Text

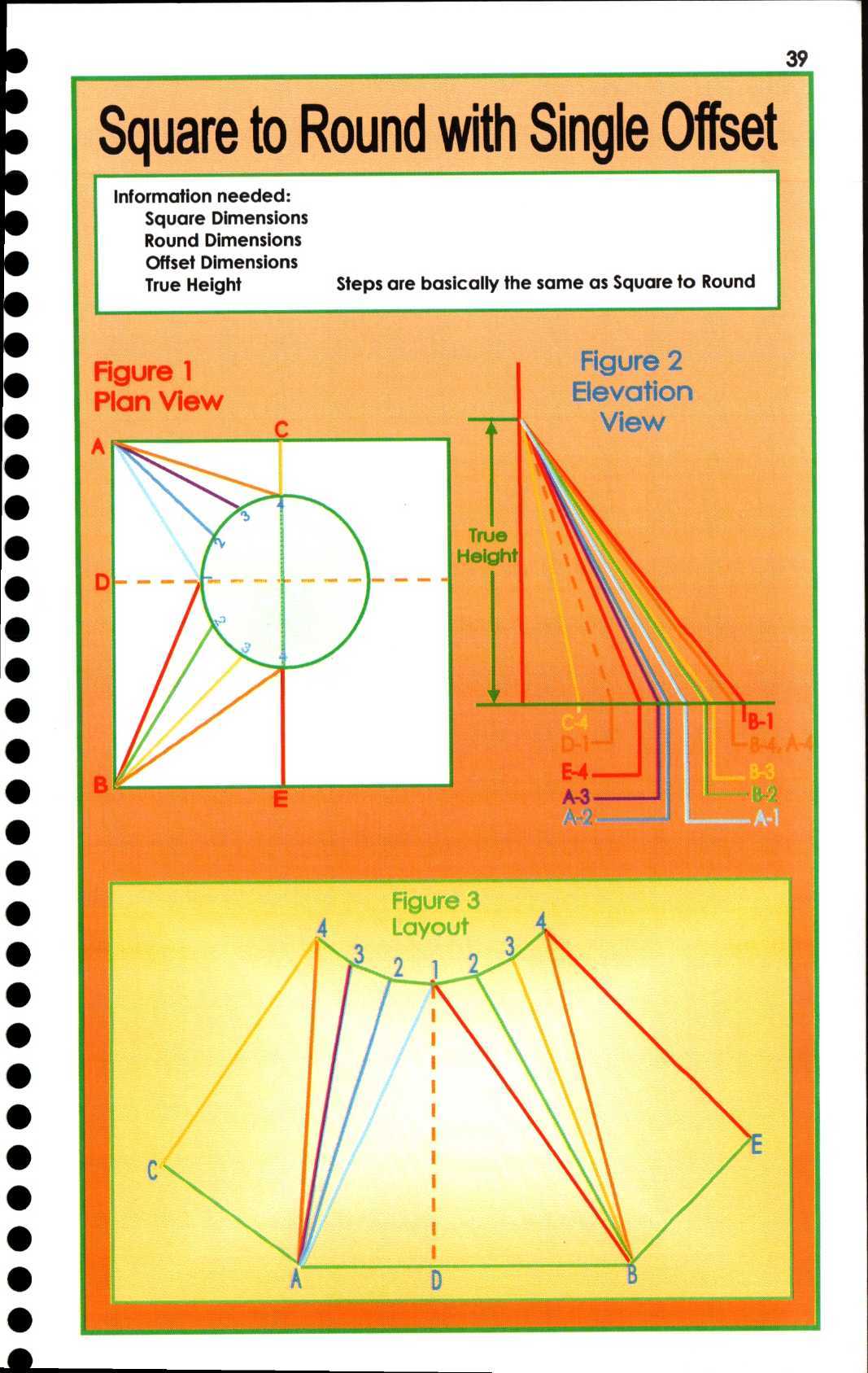

Information needed: Square Dimensions Round Dimensions Offset Dimensions True Height Steps are basically the same as Square to Round Figure 2 Elevation Figure 1 Plan View 39 Square to Round with Single Offset Figures Layout 2
